Containerize Water Treatment System

WATER FILTRATION CONTAINER SYSTEM
Application
Surface and Ground Water Filtration
System Specification

Type of Ceramic

Silicon Carbide

Flat Sheet Membrane

 Silicon Carbide Ceramic Membrane Silicon Carbide Ceramic Membrane Silicon Carbide Ceramic Membrane Silicon Carbide Ceramic Membrane
Type of Filtration Module AWF SERIES AWF SERIES AWF SERIES AWF SERIES
Type of Container AWF-S  ISO 20 AWF-M  ISO 20 AWF-L  ISO 40 AWF-EL  ISO 40
Type of Frame Design Single Filtration Tower Single Filtration Tower Double Filtration Tower Double Filtration Tower
Max. Capacity

[m³/d]

 100

(5 m3/hr.)

 240

(10 m3/hr.)

 500

( 25 m3/hr.)

 1,000

 ( 40 m3/hr.)
Max. Population Equivalent 500 1200 2500 5000
No. of Filtration Towers 1 1 2 4
No. of Filtration Modules

per Tower

 4 7 10 10
Total Filtration Area [m²] 24 42 120 240
Total Net Weight [kg] 5000 6000 10000 25000
Total Gross Weight [kg] 8000 9000 15000 22000
Height [mm] 2600 2600 2600 2600
Width [mm] 2440 2440 2440 2440
Length [mm] 6060 6060 12190 12190
Power supply 3 phases, 380 V,

6 kW

 3 phases, 380 V,

11 kW

 3 phases, 380 V,

 15 kW

 3 phases, 380 V,

 30 kW
Average Power Consumption

 [kWh per m³]

 1.0 1.0 0.7 0.7

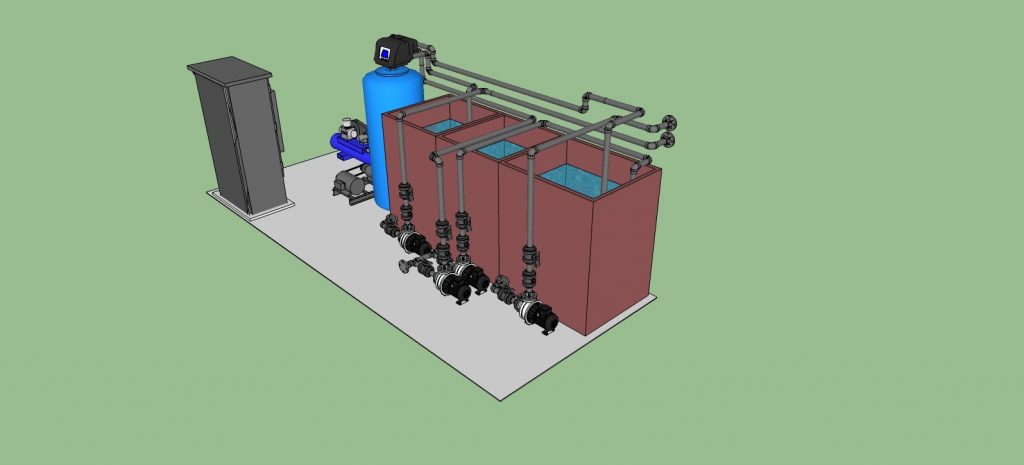

Main included Components
  • Filtration tank
  • Ceramic Membrane Systems® Filtration Technology
  • Filtered water backwash tank
  • Membrane CIP station
  • Control Cabinet with internet monitoring & controlling system and  PLC with touch screen
Requirements at Installation Site
  • Foundation for container
  • Connection to high tank system
  • Power supply
  • Sludge drain
  • Raw water Tank
Filtration System
  • Media  filter unit (pressure tank)
  • Automatic  filtration & back wash system
  • Media Activated carbon  or Softener Resin or  Pyrolusite
Raw Water Quality
  • Turbidity < 150 NTU
  • Iron < 5 ppm.
  • Manganese < 1 ppm.
  • pH 6-8
Filtrate Water Quality
  • Turbidity < 1 NTU
  • Iron <0.3 ppm.
  • Manganese <0.3 ppm.
  • pH  6-8
Drinking water
  • Option
System Operation Hour
  • Automatic operation 24 Hours
Warranty
  • 1 year
